Revotech
Non-IBR, four-pass, fully automatic coil-type steam boiler with the Reverse Flue combustion principle.
- Non-IBR: the coil holds under 25 litres
- Full steam pressure in 3–5 minutes from cold
- Four-pass reverse-flue design, 88 % on NCV
Steam, thermic fluid, hot air and hot water: six families of process heating, every one designed and built in our own factories at Asangaon. Choose a category, compare the highlights, then open any of 102 individual models.
01Steam Boilers & Generators10 – 1,000 kg/hr · up to 15 kg/cm²4 products →
02Thermic Fluid Heaters10,000 – 15,00,000 kcal/hr · up to 300 °C3 products →
03Hot Air Generators30,000 – 10,00,000 kcal/hr · up to 400 °C2 products →
04Hot Water & Tank Heating50,000 – 6,00,000 kcal/hr · up to 90 °C2 products →
05Industrial Heat Pumps15 – 270 kW per machine · up to 120 °C1 product →
06Gas, Conversions & Process EquipmentTurnkey · design to commissioning3 products →Coil-type, Non-IBR and fully automatic. No registration, no boiler house, no certified attendant, and full steam pressure within minutes of switching on.

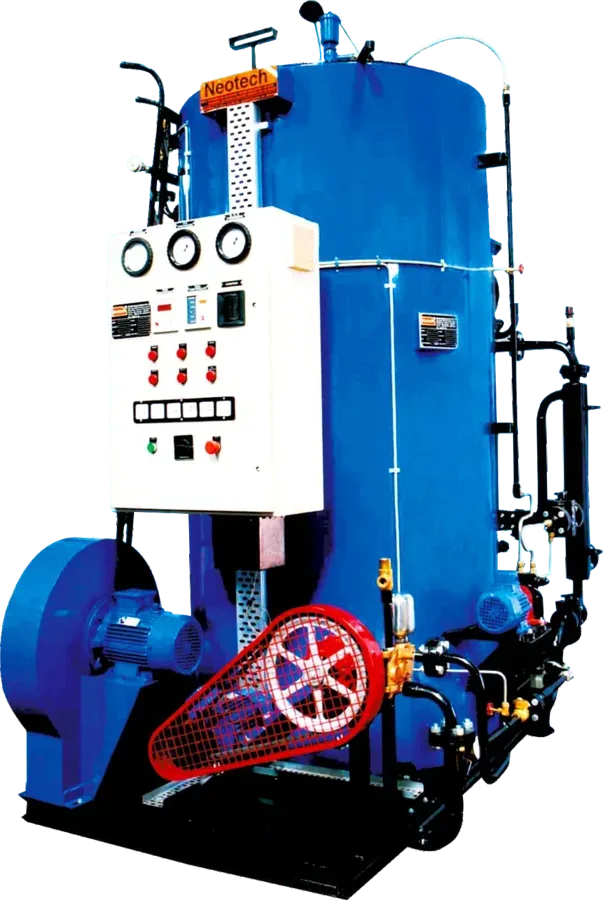

Non-IBR, four-pass, fully automatic coil-type steam boiler with the Reverse Flue combustion principle.
Packaged non-IBR four-pass steam boiler with an imported, fully automatic gas burner — efficiency in the vicinity of 90 %.
Compact three-pass mini steam boiler with imported monoblock burners — ideal for replacing electrically heated steam boilers.
Extremely compact, portable steam generators for small, regular requirements of dry steam — electric, gas or oil fired.
High process temperatures at near-atmospheric pressure, on oil, gas, solid fuel or electricity.
Vertical, fully automatic thermic fluid heater with four heat-transfer passes — 300 °C at the outlet, 88 % efficiency.
Coal, wood or briquette fired thermic fluid heater with external furnace and balanced draught — built for low-grade fuels.

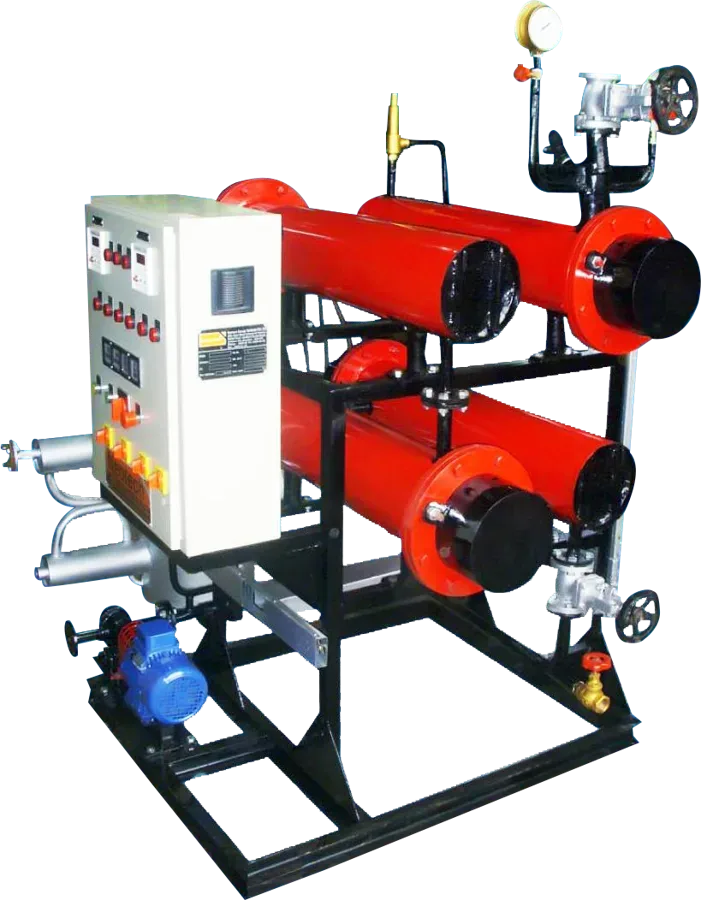

Skid-mounted electric thermic fluid heating system — 98 % efficient, 280 °C, no chimney, no fuel handling.
Clean, indirect hot air for drying and curing, fired on oil, gas or low-cost solid fuel.
Fully automatic hot air generators delivering clean, uncontaminated hot air for process drying — indirect to 300 °C, direct to 800 °C.
Indirect, fully automatic hot air generator firing wood, coal or agro-briquettes — clean hot air up to 200 °C.
Riello-fired hot water generators and tank heating systems that replace electric immersion heaters.
Three-pass hot water generators with imported Italian Riello burners — up to 90 °C, close to 90 % efficient.

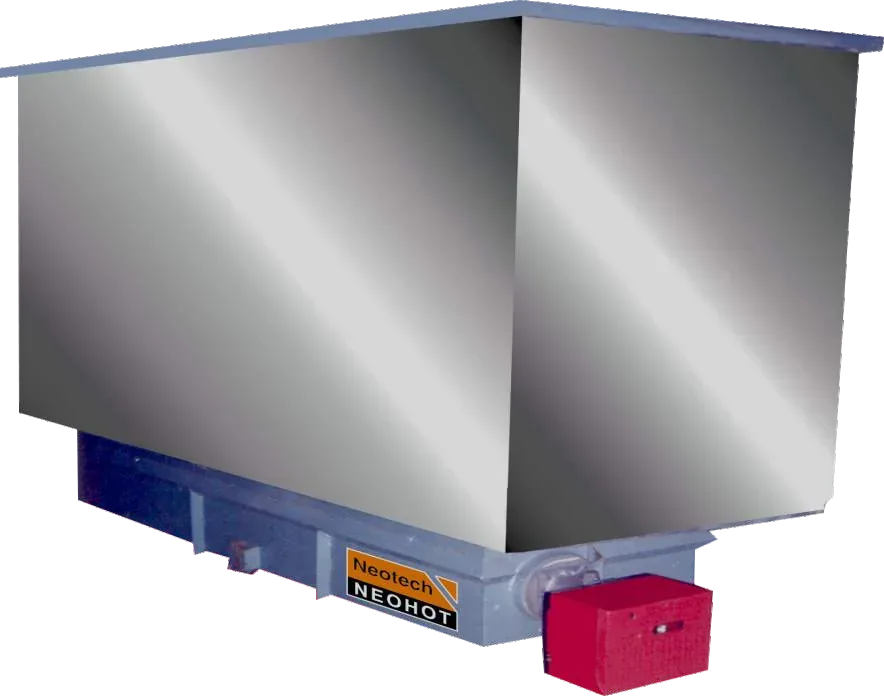

Four-pass stainless-steel tank heating system with Riello burner — the efficient replacement for electrically heated pretreatment tanks.
Hot water for process heat without combustion, using a fraction of the energy of electric or fired heating.
Air-source and water-to-water heat pumps that make process hot water to 80, 95 and 120 °C from electricity and free ambient heat — no boiler, no combustion.
Gas piping, Riello burners and spares, and fabricated process equipment, from the same engineering team.
Design, liaison, installation and maintenance of PNG and LPG networks for high-rise residential, commercial and industrial projects.
Convert existing boilers, heaters, ovens and dryers to cheaper, cleaner fuels — with Riello burners, Neotech engineering and genuine spares.

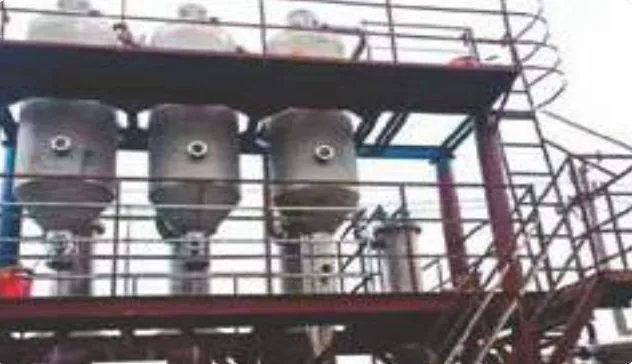

Storage vessels, multi-effect evaporators, process filters, columns, condensers, reactors and high-pressure vessels — designed, fabricated and delivered turnkey.
| RT / RTG | Revotech oil / gas steam boiler; number = steam kg/hr ÷ 100 (RT-05 = 500 kg/hr) |
|---|---|
| NME / NM'G' / NM'O' | Nanomatic electric / gas / oil; number = steam kg/hr |
| NT / NTC / NTE | Neotherm oil / solid fuel / electric; number = thousand kcal/hr (NT:200 = 2,00,000 kcal/hr); NTE number = kW |
| TDB I / TDB G / TDB SF | Technodry Block indirect-oil / gas / solid fuel; number = thousand kcal/hr |
| NHI / NHG / NHPI / NHPG | Neohydrics oil / gas; P = pressurised; number = thousand kcal/hr |
| SE-HT / SHT / UHT | Sunniva high / super-high / ultra-high temperature heat pump; number ≈ kW |
Under the Indian Boiler Regulations, a boiler whose steam-generating volume is under 25 litres is outside the Act. Our Revotech, Minimatic and Nanomatic steam boilers are coil-type units below that limit. You don't need IBR registration, annual inspection, a separate boiler house or a certified boiler attendant.
Choose steam for direct heating, sterilisation, humidification and anything below about 180 °C. A thermic fluid heater gives 250–300 °C at near-atmospheric pressure, which suits reactors, stenters, corrugators and hot-oil presses where steam would need very high pressure.
It depends on your local prices. Solid fuel is usually cheapest per kcal, then PNG, then LPG or diesel, with electric heaters the most expensive. For hot water up to 80 °C, a heat pump usually beats all of them. The Applications pages compare running cost and CO₂ at your own prices.
Yes. As Riello's authorised representative since 2001, we convert boilers, thermic fluid heaters, ovens and dryers from oil or electricity to PNG or LPG, and we can lay the gas piping as well.
The duty (steam kg/hr, kcal/hr or litres of water per day), the working pressure or temperature, the fuel available at site, and your location. If you only know the process, start from Applications and we will work out the heat load first.
Tell the calculator what you are heating. It works out the heat load, names the Neotech model, and shows what it will cost to run on each fuel.
